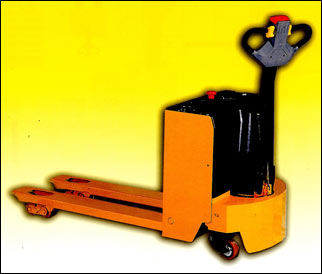

Power pallet truck
K9 SBE



K9 SBE

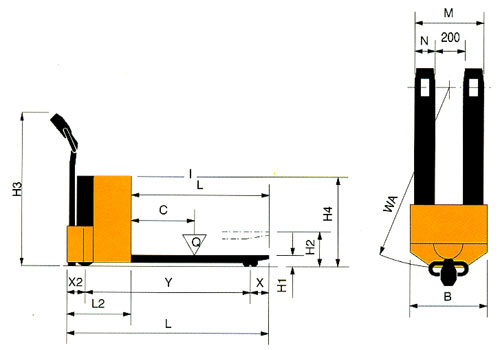

 Q Kg 1400
 C mm 600
 I mm 1150
 L mm 1700
 X mm 210
 X2 mm 170
 Y mm 1320
 L2 mm 550
 M mm 520
 N mm 160
 H1 mm 85
 H2 mm 200
 H3 mm 1300
 H4 mm 730
 B mm 670
 WA mm 1350
 Weight Kg 200







TECHNICAL DATA
 Capacity Kg 1400
 Heavy duty battery 48Ah 24V
 Drive motor 700W 24V
 Lifting motor 1200W24V
 Gradient without/with load % 3/5 8A24V
 Charger mm 82x70
 Tandem rollers in polyurethane mm 250x76
 Drive wheel revolving at 180° rubber mm 100x40
 Steering wheels in polyurethane cm/sec 5/4
 Lifting speed without/with load km/h 5-4
 Travel speed without/with load
 Electromagnetic brake
 Driving wheel with tempered gears
 Self lubricating bearings
 Electring lifting and electric lowering
 Electronic system s.e.
